PoE Camera Installation Oshawa

A security camera should never depend on a separate power outlet at every mounting point, fighting weather, distance, and a patchwork of adapters. One Ethernet cable can carry both power and video instead, which is exactly what PoE Camera Installation Oshawa delivers when done right the first time.

Every additional power run a security system needs is another point where something can fail: a tripped breaker, a chewed cord, an outlet that was never rated for outdoor use. PoE Camera Installation Oshawa eliminates most of that risk by carrying both power and data through a single Ethernet cable, which is why it has become the standard for commercial and residential systems with more than a handful of cameras. Electrical Services Ontario designs and runs PoE systems that stay reliable for years, not just through the first inspection.

What Power over Ethernet Actually Does

Power over Ethernet sends low-voltage electrical current down the same Cat5e or Cat6 cable that carries video and network data, so a camera only needs one cable run instead of two separate ones. This matters most at mounting points far from an electrical panel, since running a dedicated power circuit to a camera on the far corner of a building in Oshawa can cost more than the camera itself. A single PoE cable run, by contrast, only needs to reach a network switch, not an outlet.

Properties throughout Oshawa with older buildings often have plenty of available network wiring paths but very few convenient power outlets near where cameras actually need to go. PoE sidesteps that mismatch entirely, since the same cable path that already makes sense for a network connection also carries the power. This is a big part of why PoE has replaced older analog and Wi-Fi camera setups for anything beyond a single doorbell camera.

The PoE Camera Installation Process in Oshawa

A proper PoE Camera Installation Oshawa starts with confirming the network infrastructure can actually support the load. Our technicians calculate the total power budget across every planned camera and compare it against the PoE switch's power budget, since running more cameras than a switch can actually power results in cameras that randomly drop offline or fail to power on at all. This step gets skipped by installers who treat every job as identical, and it is the single most common cause of a PoE system that works fine on day one and fails within a few months.

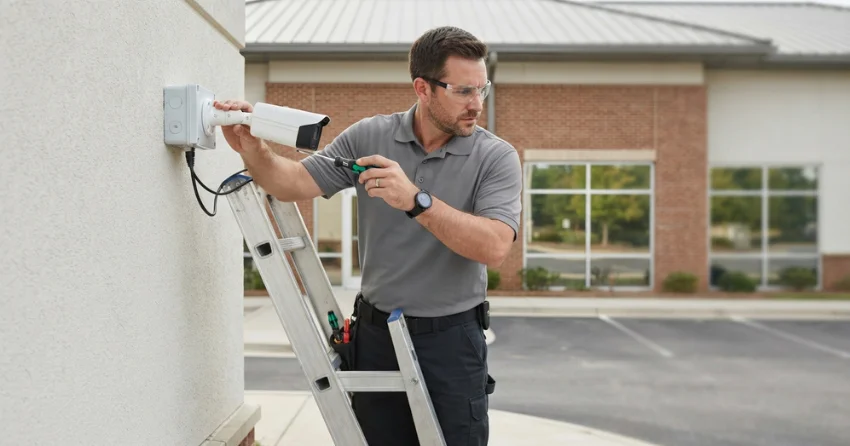

Once the switch capacity is confirmed, our crew runs Cat6 cable to each camera location for properties throughout Oshawa, terminates it correctly, and tests power delivery and signal quality at every single point before calling the job finished. Cable runs beyond 100 meters need a PoE extender or repeater, since standard Ethernet has a hard distance limit before signal quality degrades. Skipping this consideration is another common shortcut that produces cameras with intermittent connectivity issues that are difficult to diagnose after the fact.

Frequently Asked Questions

Choosing Switches, Injectors, and NVRs in Oshawa

A dedicated PoE switch is the standard choice for any system across Oshawa with more than three or four cameras, since it powers every connected camera directly and centralizes network management in one place. Smaller installations sometimes use individual PoE injectors instead, which add power to a single non-PoE camera's Ethernet line without requiring a full switch upgrade. Injectors work fine for one or two cameras but become impractical and expensive to manage once a system grows past that point.

Many commercial systems pair the PoE switch directly with an NVR that has built-in PoE ports, which simplifies the network topology by eliminating a separate switch entirely for smaller deployments. This choice matters for any PoE Camera Installation Oshawa where budget and simplicity outweigh the need for a large, separately managed network. Larger systems generally need a standalone managed switch so camera traffic, other network devices, and PoE power budgets can all be handled correctly without one device becoming a bottleneck for the whole property.

Why PoE Standards Matter for Camera Power

Not all PoE is equal for properties in Oshawa, and using the wrong standard for a given camera can mean the camera runs underpowered or does not power on at all. PoE, known as 802.3af, delivers up to 15.4 watts and covers most basic fixed cameras. PoE+ (802.3at) delivers up to 30 watts and is required for cameras with heaters, built-in illuminators, or PTZ motors that draw more power than a standard fixed camera. PoE++, or 802.3bt, pushes that further still, supporting high-power PTZ units and multi-sensor cameras that would otherwise need a separate power source entirely.

Mismatching a camera's power requirement against the switch's PoE standard is a common source of installation problems for properties throughout Oshawa, particularly on systems that mix standard fixed cameras with PTZ or heated housing units on the same switch. Our team specifies the correct PoE class for every camera during design, rather than assuming a single standard covers the whole system, since a single underpowered camera on an otherwise correctly designed network still fails intermittently in exactly the way that is hardest to trace.

Cable Quality and Distance Limitations Around Oshawa

Every PoE Camera Installation Oshawa depends on cable quality as much as camera hardware. Standard Ethernet cable carries both power and data reliably up to 100 meters, which covers most residential and small commercial installations without any special equipment. Properties across Oshawa with cameras positioned farther from the network closet, such as a detached garage, a large warehouse floor, or a property perimeter, need either a PoE extender placed partway along the run or a fiber-to-Ethernet media converter for genuinely long distances.

Cable quality matters as much as cable length for installations throughout Oshawa. Outdoor-rated, shielded Cat6 cable resists interference and moisture in a way indoor-rated cable simply cannot, and running the wrong cable type outdoors is a common cause of intermittent camera dropouts that only show up after the first heavy rain or temperature swing. Our crews only use cable rated for the specific installation environment, indoor or outdoor, rather than running whatever is on hand.

Integrating PoE Cameras With an Existing Network

Adding a PoE camera system to a network that already handles other business-critical traffic requires some planning for properties in Oshawa to avoid one system interfering with the other. Camera traffic can consume meaningful bandwidth, especially with multiple high-resolution units recording continuously, so segmenting camera traffic onto its own VLAN keeps it from competing with point-of-sale systems, office computers, or other critical network functions.

Electrical Services Ontario configures network segmentation as a standard part of any PoE Camera Installation Oshawa job involving an existing business network, since camera systems that share an unmanaged network with everything else are more prone to both performance issues and security vulnerabilities. A properly segmented network also makes it easier to troubleshoot a camera issue without disrupting other systems on the property.

Retrofitting PoE Into an Older Analog System

PoE Camera Installation Oshawa often means replacing an aging analog system rather than starting from scratch. Many properties still run older analog or coaxial camera systems that were installed years ago and never upgraded. Converting to PoE usually means running entirely new cable, since coaxial cable cannot carry the network data a PoE camera needs, though some properties can reuse existing conduit paths to reduce labor and shorten the overall timeline for the switch.

• Existing conduit reuse can significantly reduce cable-pulling labor if the paths are still accessible
• Camera count often increases during a retrofit since PoE makes additional camera locations more affordable to add
• Old analog NVRs need full replacement, since they cannot process IP camera signals
• Network switch capacity needs verification or upgrading to support the new PoE load
• A phased rollout lets larger properties spread the retrofit cost across multiple visits

Our technicians assess what can be reused before quoting a retrofit, since assuming everything needs replacement produces an inflated estimate that does not reflect the actual scope of work.

Pricing for PoE Camera Installation Oshawa

Typical costs for professional PoE Camera Installation for properties across Oshawa range from roughly $200 to $500 per camera installed for labor and cabling, plus $200 to $1,500 for a PoE switch depending on port count and power budget. A small system of four to eight cameras generally lands between $1,500 and $6,000 fully installed, while larger commercial deployments with 16 or more cameras can run considerably higher once network infrastructure and NVR storage are factored in. Call (289) 672-2825 or contact us to get a quote for your specific camera count and property layout.

Retrofits from an older analog system typically cost more than a new PoE installation on an empty property, since removing old equipment and running new cable adds labor the original installation never needed. We walk through exactly what a retrofit will involve for properties throughout Oshawa before any work begins, so the quote reflects the real scope rather than a generic per-camera estimate.

Keeping a PoE System Reliable Long Term

PoE Camera Installation Oshawa does not end when the last camera goes live. A PoE system that was designed correctly at installation still benefits from periodic checks, especially as a property adds cameras or other network devices over time. Adding cameras to an existing switch without recalculating the total power budget is a common way a previously reliable system starts developing intermittent issues months or years after the original installation.

Firmware updates on switches and NVRs matter more than most property owners across Oshawa realize, since manufacturers regularly patch both security vulnerabilities and power management bugs that affect PoE delivery. Our team can include periodic system checks as part of an ongoing service relationship, catching a developing power budget issue before it causes a camera to drop offline during exactly the wrong moment.

Common PoE Installation Mistakes We See

Undersized switches are the most frequent problem our technicians find when called in to fix a struggling existing system for a property in Oshawa. A switch rated for fewer watts than the connected cameras actually draw will power some cameras intermittently or not at all, and this failure mode is easy to misdiagnose as a camera hardware issue rather than a power budget problem.

Improper cable termination is a close second, particularly on jobs done without professional crimping tools or proper testing equipment. A cable that looks correctly terminated can still fail intermittently under load, which is exactly the kind of problem that is expensive and time-consuming to trace after the fact instead of catching during installation with proper testing.

Mixing cable categories on the same run is a third mistake we see regularly across Oshawa, usually from a partial upgrade where new Cat6 cable gets spliced into an older Cat5 segment to save on materials. The connection technically works, but it caps performance at the lower standard and often introduces the exact kind of intermittent signal loss that takes hours to diagnose because everything appears correctly wired on a visual inspection. Consistent cable category throughout a run avoids this problem entirely.

Our Standard for PoE Camera Installation Across Oshawa

Electrical Services Ontario is fully licensed and insured, and every PoE Camera Installation Oshawa job is backed by a satisfaction guarantee on both the cameras and the underlying network infrastructure. With 15 years of experience running low-voltage and network cabling, our technicians understand the difference between an installation that looks finished and one that actually holds up under real network load.

We test power delivery and signal quality at every single camera before calling a job complete, not just the majority of them. That standard is why property managers and business owners across Oshawa call our crew back for system expansions instead of discovering intermittent failures months after a rushed installation elsewhere.

Every technician on our crew is trained specifically on PoE power budgeting, not just general low-voltage wiring, since the two require genuinely different diagnostic skills when something goes wrong. A system that looks correctly cabled can still fail because of a power budget miscalculation that has nothing to do with the physical wiring itself, and catching that distinction quickly is what separates a fast fix from a multi-visit troubleshooting process.

Get Your PoE Camera Installation Quote in Oshawa

Before scheduling an installation, check how many cameras your existing network switch can realistically support, since that number often determines whether a straightforward install or a network upgrade comes first. Properties throughout Oshawa planning a larger system benefit from a walkthrough that confirms switch capacity and cable routing before any equipment is ordered.

A PoE system installed correctly the first time rarely needs revisiting for years, while a rushed one tends to generate service calls within months. The upfront cost difference for a job in Oshawa between a properly designed system and a shortcut version is usually smaller than the cost of the service calls the shortcut generates over its first year alone.

contact us or call (289) 672-2825 and our team will map out exactly what your property needs before any cable gets pulled.
